Trailer Warehouse

Stop / Tail / Indicator / Reverse Lamp 97 LEDs - Multi Volt ADR Aproed 1/00 & 49/00 & 6/00 Cat2  Current Draw Stop 0.33A Tail 0.03A Indicator 0.34A Reverse 0.29A                                                Bracket Size: L278mmxW100mmxD28mm          Lamp Size: L80mmxW80mmxD25mm

Stop / Tail / Indicator / Reverse Lamp 123 LEDs - Multi Volt ADR Aproved 1/00 & 49/00 & 6/00 Cat2 Current Draw Stop 0.74A Tail 0.04A Indicator 0.43A Reverse 0.36A                                                 Bracket Size: L350mmxW120mmxD32mm           Lamp Size: L100mmxW100mmxD28mm

Stop / Tail / Indicator / Reverse Lamp 153 LEDs - Multi Volt ADR Aproved 1/00 & 49/00 & 6/00 Cat2 Current Draw Stop 0.45A Tail 0.04A Indicator 0.43A Reverse 0.36A                                                 Bracket Size: L415mmxW145mmxD32mm              Lamp Size: L125mmxW125mmxD28mm

LED 4 Lamp 24Volt. Stop /Tail Indicator Overall Size 350*105*47mm. ADR Aproved 49/00 & 6/00 Cat 2.       For mounting instructions refer to ADR 13/00.  CRN Number 80BAARR24 33098- 33059.                           Current draw @ 13.8V  80 BAARR Stop 0.66A Tail 0.06A Indicator 0.62A . Only available in Box Only

This 4 Lamp design incorporates a dummy load resister which is fitted so the indicator can operate correctly .There are provisions in the bracket to incorporate further dummy load resistor if required for stop function. These lamps have 144 LEDs & a 5 year warranty.

LED 4 Lamp 12Volt. Stop /Tail Indicator Overall Size 430*125*50MM. ADR Aproved 49/00 & 6/00 Cat 2.       For mounting instructions refer to ADR 13/00.  CRN Number 100BAARR12 33156- 33402.                            Current draw @ 13.8V  100 BAARR Stop 0.74A Tail 0.08A Indicator 0.68A . Only available in Box Only

This 4 Lamp design incorporates a dummy load resister which is fitted so the indicator can operate correctly .There are provisions in the bracket to incorporate further dummy load resistor if required for stop function. These lamps have 196 LEDs & a 5 year warranty.

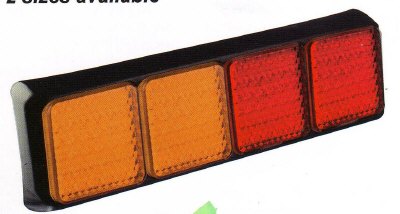

LED 4 Lamp 24Volt. Stop /Tail Indicator Overall Size 430*125*50mm. ADR Aproved 49/00 & 6/00 Cat 2.       For mounting instructions refer to ADR 13/00.  CRN Number 100BAARR24 33156- 33402-35797             Current draw @ 13.8V  100 BAARR Stop 0.74A Tail 0.08A Indicator 0.68A . Only available in Box Only

This 4 Lamp design incorporates a dummy load resister which is fitted so the indicator can operate correctly .There are provisions in the bracket to incorporate further dummy load resistor if required for stop function. These lamps have 196 LEDs & a 5 year warranty.

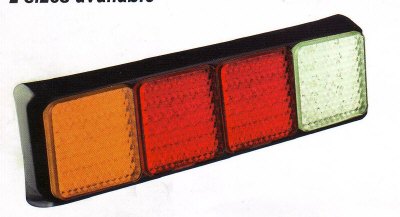

LED 4 Lamp 24Volt. Stop /Tail / Indicator / Reverse. Overall Size 350*105*47mm. ADR Aproved 49/00 & 6/00 Cat 2. & 100 For mounting instructions refer to ADR 13/00.  CRN Number 80BARRW24 33098- 33059-25797         Current draw @ 13.8V  80 BARRW Stop 0.66A Tail 0.063A Indicator 0.31A Reverse 0.29 A. Only available in Box Only

This 4 Lamp design incorporates a dummy load resister which is fitted so the indicator can operate correctly .There are provisions in the bracket to incorporate further dummy load resistor if required for stop function. These lamps have 133 LEDs & a 5 year warranty.

LED 4 Lamp 12Volt. Stop /Tail / Indicator / Reverse. Overall Size 430*125*50mm. ADR Aproved 49/00 & 6/00 Cat 2. & 100 For mounting instructions refer to ADR 13/00.  CRN Number 100BARRW12 33156- 33402- 35793       Current draw @ 13.8V  100 BARRW Stop 0.74A Tail 0.08A Indicator 0.34A Reverse 0.34 A. Only available in Box Only

This 4 Lamp design incorporates a dummy load resister which is fitted so the indicator can operate correctly .There are provisions in the bracket to incorporate further dummy load resistor if required for stop function. These lamps have 172 LEDs & a 5 year warranty.

LED 4 Lamp 24Volt. Stop /Tail / Indicator / Reverse. Overall Size 430*125*50mm. ADR Aproved 49/00 & 6/00 Cat 2. & 100 For mounting instructions refer to ADR 13/00.  CRN Number 100BARRW24 33156- 33402- 35793       Current draw @ 13.8V  100 BARRW24 Stop 0.74A Tail 0.08A Indicator 0.34A Reverse 0.34 A. Only available in Box Only

This 4 Lamp design incorporates a dummy load resister which is fitted so the indicator can operate correctly .There are provisions in the bracket to incorporate further dummy load resistor if required for stop function. These lamps have 172 LEDs & a 5 year warranty.

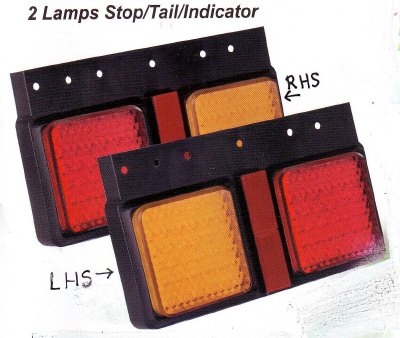

LED 12 Volt RIGHT  hand side. Specially designed to retrofit to lamp types commonly used on trucks. Dummy resistors used for electronic flasher relays light out warning function. For mounting instructions refer to ADR 13/00

Lamps specifically designed to replace Nissan & Iveco globe type rear lamp assembly. Dummy load resistor incorporated for the indicaror lamps. Reflex indicator included in bracket. 128 LEDs & a 5 year warranty.Overall sixe 200*340*60mm ADR Aproved 49/00 6/00 Cat 2A. CRN Number 33165,33403 Current Draw Stop 0.45A, Tail 0.04A Indicator 0.43A. 40cm hard wired with male and female waterproof connections.

LED 24 Volt Left hand side. Specially designed to retrofit to lamp types commonly used on trucks. Dummy resistors used for electronic flasher relays light out warning function. For mounting instructions refer to ADR 13/00

Lamps specifically designed to replace Nissan & Iveco globe type rear lamp assembly. Dummy load resistor incorporated for the indicaror lamps. Reflex indicator included in bracket. 128 LEDs & a 5 year warranty.Overall sixe 200*340*60mm ADR Aproved 49/00 6/00 Cat 2A. CRN Number 33165,33403 Current Draw Stop 0.45A, Tail 0.04A Indicator 0.43A. 40cm hard wired with male and female waterproof connections.

LED 24 Volt RIGHT hand side. Specially designed to retrofit to lamp types commonly used on trucks. Dummy resistors used for electronic flasher relays light out warning function. For mounting instructions refer to ADR 13/00

Lamps specifically designed to replace Nissan & Iveco globe type rear lamp assembly. Dummy load resistor incorporated for the indicaror lamps. Reflex indicator included in bracket. 128 LEDs & a 5 year warranty.Overall sixe 200*340*60mm ADR Aproved 49/00 6/00 Cat 2A. CRN Number 33165,33403 Current Draw Stop 0.45A, Tail 0.04A Indicator 0.43A. 40cm hard wired with male and female waterproof connections.
