Suburban RV Hot Water System SW6DA
!
Larger picture

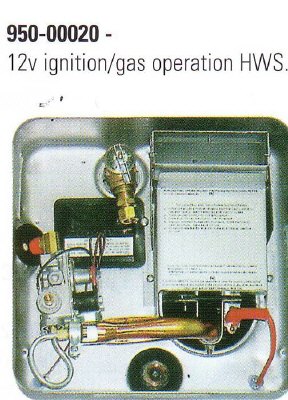

Hot Water System

SW6DA with Direct Spark

12volt ignition / gas operation HWS

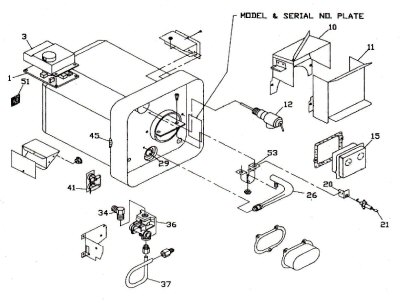

Part 1

Small computer board

Part 3

Plastic cover only t/s computer board

Part 10

Back flue collector

Part 11

Front flue collector

Part 12

Preasure relief valve

Part 15

T/sat cover single reset

Part 20

Mount bracket for electrode probe

Part 21

Electrode Probe

Part 26

Main Burner with in built orifice
Larger picture

Part 29

Magnesium Anode rod. All Suburban RV Hot Water Systems have an anode rod which absorbs all the corrosiveaction of hot water. It is located on the bottom of HWS under the main burner. You simply unscrew this to drain the tank of water. If the rod is eaten away, replace it with a new one

CAUTION Make sure that the water in this unit is COLD Release the pressure before removing the Anode.Failure to do this may result in being burnt by hot water. If unsure or cannot understand what I mean please take your van to an authorised repairer.

Part 34

Gas supply elbow

Part 36

Gas Valve

Part 37

Manifold outlet

Part 41

Thermostat 12volr DC set 140DF

Part 45

Grommet only suits gas inlet pipe

Part 51

Switch & Plate Assembly

Part 53

Burner Bracket Assembly

Part 54

External door complete

Part 55

Polar white flue plate for external door
